Innovation Days Connected Drive 2011.05.10.20111. The seventh sense – more knowledge, better visibility and intelligent light functions enhance safety on the roads.Dynamic Light Spot
1.1 Dynamic Light Spot – targeted light beam for improved safety.Spot on: BMW Night Vision of the next generation will feature the Dynamic Light Spot. Thanks to this targeted beam of light, pedestrians will become even more visible at night and accidents can be avoided.The risk of a pedestrian being killed or injured in a traffic accident is four times as high at night or during twilight than in daylight. The same applies to the passengers themselves. Nighttime accidents – in particular serious accidents – are very often caused by the late recognition of persons or animals (e.g. deer) on the road. With BMW Night Vision, BMW has deployed a very effective assistance technology for driving in the dark under the umbrella of the BMW ConnectedDrive technologies. BMW Night Vision helps the driver by means of a thermal imaging camera for proactive, safe driving at night.All cats are grey at night and visibility is very limited.Conventional low-beam light allows drivers a theoretical range of vision of about 50 to 85 metres at night, which does not, however, mean that objects can be recognised at that distance. In tests, the recognisability of a darkly clad pedestrian in twilight was found to be just 29 metres. This is understandable, since at greater distances only the feet are illuminated. If the rule “drive so that you can stop within your visible range” were followed in the dark, it would not be advisable to drive even at 80 km/h since at this speed the braking distance is as much as 63 metres.Night vision assistants are good, but in future things will be even better.Today, night vision assistants such as BMW Night Vision are available. They provide the driver with an image of the area in front of the vehicle so that pedestrians and animals can be seen even from several hundred metres away. However, this presupposes that the driver uses the Night Vision screen like the rear view mirror and casts a glance at it from time to time. The technology works like this: BMW Night Vision uses an infrared camera with a viewing angle of 24 degrees which generates a thermal image that shows warm objects – people or animals – as bright shapes.The marker light – targeted illumination helps to gain time.Today, it is technically possible to identify the position of pedestrians very accurately. Once this position is known, a headlight can focus on that area and show directly where a potentially endangered pedestrian is. BMW calls this system Dynamic Light Spot. The major difference compared to other marker light assistants is that the BMW system projects a strip of light onto the road to direct the attention of the driver to the hazard. The light automatically draws the attention of the driver to the possible collision object and thus triggers an intuitive and fast reaction.See earlier, react sooner.In general, it is assumed that a vehicle driver heads in the direction in which he is looking. This has been observed in vehicle safety training when, for example, the driver learns to take evasive action in a tight situation – he usually concentrates on the zone directly in front of the vehicle. So in vehicle safety training, when a collision is imminent, the driver is taught to focus on a free pathway – or “escape route” – away from the road so that this particular direction for evasive action is within the line of vision. With Dynamic Light Spot, things are different. When an illuminated object that is beyond the braking distance is made visible to the driver, he has sufficient time to use the brakes to stop before the obstacle is reached. At the same time, Dynamic Light Spot and the strip of light on the road are switched off as soon as the vehicle is close enough for the normal lights to continue to illuminate the object. What BMW’s Dynamic Light Spot does is to indicate hazards to the driver from as far away as possible and direct his attention to them. The technical components of this system are essentially highly efficient sensors and headlight systems.The sensor system recognises living creatures by their heat radiation.To be able to warn the driver of a hazard in time, a recognition distance from the hazard of about 100 metres must be ensured, regardless of weather conditions. To achieve this, the light marking system must have a sufficiently perceptive sensor system. All currently available night vision systems based on near infrared require an input of 100W for illuminating the surroundings in front of the vehicle. Headlight systems: with LED arrays, the obstacle is in direct view.If, as in the case of BMW Night Vision, the vehicle is fitted with a suitable sensor system to achieve recognition of persons at a sufficient distance, it must be complemented by appropriate headlight technology to enable the Dynamic Light Spot function. Dynamic Light Spot can significantly reduce accident figures.BMW is planning to include the Dynamic Light Spot functionality as a part of the special BMW Night Vision option – a result of the BMW ConnectedDrive innovation philosophy for its future new models. The targeted gain in safety – for drivers and passengers as well as those who might be involved in a collision at night – has already been proved in the course of system development. During BMW test drives in the development phase of Dynamic Light Spot, on average one object was highlighted and illuminated every hour.1.2 Headlights of the future – laser light.

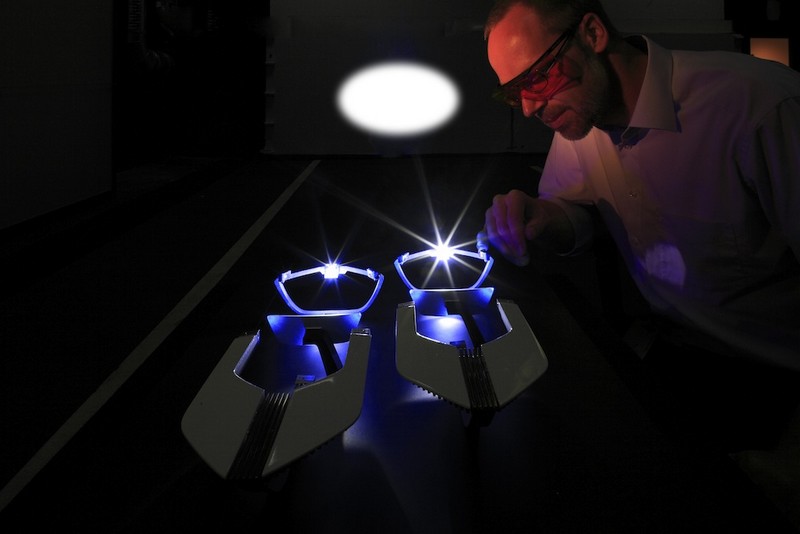

Stronger, better, brighter, further – after LED, laser is the next stage for car headlights.As a globally successful carmaker within the premium segment, the BMW Group attaches the utmost importance to advanced technology in all sectors of automotive manufacturing. Exclusive innovations and technological leaps secure BMW’s lead amongst the competition. In the field of exterior vehicle lights, BMW also leads the way for example with full-LED headlights for the BMW 6 Series and with new developments such as the Anti-dazzle High-Beam Assistant, as well as with Dynamic Light Spot. The latter refers to a marker light system that automatically illuminates pedestrians in good time, thereby guiding the driver’s attention to them.After LED technology, laser light is the next logical step in car lighting development. BMW engineers are currently already working on the introduction of laser light as a further pioneering technology for series production within a few years. Laser light could then facilitate entirely new light functions for even more safety and comfort and at the same time contribute significantly through its higher degree of efficiency towards a saving in energy and fuel respectively.Laser light produces virtually parallel light beams.By definition, laser lighting is radically different from sunlight, and also from the various types of artificial lighting in common use today. For a start, laser lighting is monochromatic, which means that the light waves all have the same length. And it is also what is known as a “coherent” light source, which means that its waves have a constant phase difference. As a result, laser lighting can produce a near-parallel beam with an intensity a thousand times greater than that of conventional LEDs. In vehicle headlights, these characteristics can be used to implement entirely new functions. Also, the high inherent efficiency of laser lighting means that laser headlights have less than half the energy consumption of LED headlights. Simply put, laser headlights save fuel.Laser diodes are already in use today in the consumer sector.Completely safe laser lighting technology is already in use in a variety of consumer products, though in many cases this is a product feature that goes unnoticed by the customer. That won’t be the case when this technology is used in cars, however, as planned by BMW. Here the whole point is that the advantages should be noticeable and visible. A further feature of laser technology, which has important implications, is the size of the individual diodes. With a length of just ten microns (μm), laser diodes are one hundred times smaller even than the small, square-shaped cells used in conventional LED lighting, which have a side length of one millimetre. A further advantage of laser lighting technology, and one which the BMW engineers intend to use to full effect, is its high inherent efficiency. A single statistic will make this clear: whereas LED lighting generates only around 100 lumens (a photometric unit of light output) per watt, laser lighting generates approximately 170 lumens. Laser lighting: high efficiency and safety.Safety is a key consideration in the development of laser lighting for use in passenger cars. For BMW, the complete eye safety of this technology for all road users and its complete reliability in day-to-day use have top priority. Importantly, therefore, before the light from the tiny laser diodes is emitted onto the road, the originally bluish laser light beam is first of all converted by means of a fluorescent phosphor material inside the headlight into a pure white light which is very bright and pleasant to the eye. As a result, in future it will be possible to use laser light to implement all the familiar – including more recent – BMW lighting functions such as Adaptive Headlights, the Dynamic Light Spot spotlighting system and the Anti-Dazzle High-Beam Assistant. It will also be possible to use BMW laser lighting to implement completely new functions, which will have only minimal power consumption.1.3 Proactive Connectivity – more knowledge, greater safety.

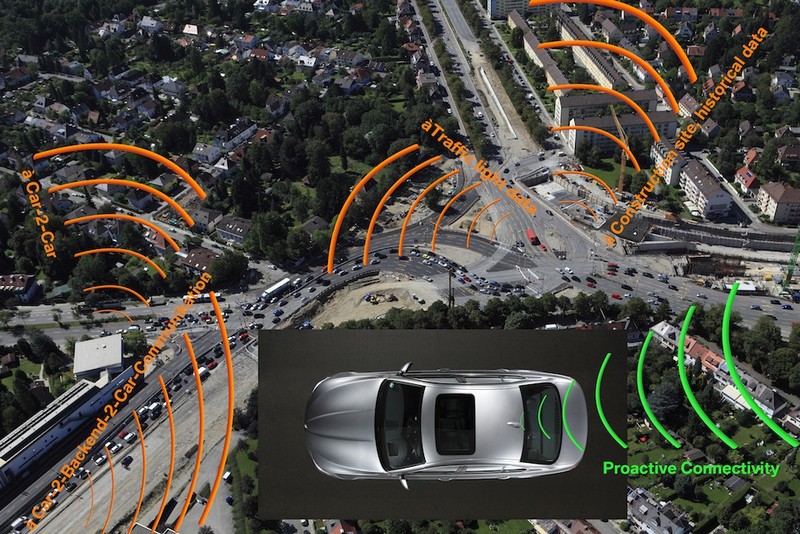

It’s normally the stuff of Hollywood blockbusters: predicting what is going to happen in the next two minutes. The car of the future will be able to do just that.What will you find around the next corner? Can you expect tailbacks at some point along the route? The more drivers know about the journey ahead of them, the better they and their vehicles can prepare for and react to upcoming situations. That’s why the BMW Group development engineers have for some time been focusing on collecting information on the road ahead, and telling drivers what is happening a certain distance down the road. This helps to promote safety, and the information can be used for proactive driver assistance technology, navigation systems and energy management. Two ongoing BMW Group research projects with these aims in mind are entitled“Local Hazard Warning” and “Proactive Connectivity”.Local Hazard Warning.The aim of local hazard warning is to alert the driver in good time to difficult-to- foresee dangers on the motorway, for example the end of a tailback around a corner, an accident or a narrowing of the road through moving roadworks.Local hazard warning technology flags up potential danger at an early stage with the aim of reducing its impact. “A hazard I know about before I reach it is only half as dangerous, as I can prepare for it in advance.” (Georg Obert, Project Manager Local Hazard Warning at BMW Group Traffic Management)“With our Proactive Connectivity project we are aiming to look into the future and foresee what will happen down the road in two minutes’ time.” (Dr Ilse Kulp, Project Manager Proactive Connectivity at BMW Group Research and Technology) The engineers’ aim is to provide a reliable prediction on the speed and therefore flow of the traffic for the next two minutes along a given route. Depending on the driving scenario, this means casting an eye a few hundred metres down the road in the city or several kilometres on the motorway. The idea with calculating predictions of this kind is to keep drivers supplied with information on the traffic situation ahead at an early stage and combine this with recommendations on speed and route guidance to help them reach their destination safely and efficiently.Several data sources deliver unbeatable reliability.Proactive connectivity is based on simulation of the traffic on the same road over the next section of a car’s journey. Using a number of different data sources ensures that the prediction is as reliable as possible from the outset. One of these sources is historical traffic data based on the observation of a predefined section of traffic over an extended timeframe. As such, it allows forecasts to be made as to the volume of traffic and its average speed at a particular time and in a particular place. This allows us to draw initial conclusions on the probable traffic density and therefore the likelihood of tailbacks, for example.An algorithm calculates the future.Based on the intelligent fusion of this data, an algorithm calculates how the traffic will develop in the next two minutes. The algorithm uses this data to provide recommendations on how the driver should respond. These can take the form of warning alerts, for example, or recommendations on the speed the driver should keep to in order to arrive at traffic lights when they are green. Another possibility would be an early warning that the traffic lights are about to turn red, allowing the driver to save fuel by coasting to a stop (while taking into account the expected queue of other vehicles waiting at the lights).100 scenarios per second.The algorithm runs this simulation approximately 100 times per second, with the distribution of vehicles on the road and the responses of their virtual drivers changing randomly each time. This produces 100 different variants per second of what might happen in the next two minutes on the road. From this wealth of possible scenarios and data on the frequency of particular incidents, reliable predictions are deduced on how the next two minutes will unfold in reality. The algorithm then sends the driver suitable warnings or indications if it detects that one or various scenarios are highly likely.Vehicle or backend?In the latest research prototype a large computer in the boot supplies the required processing power, but this could theoretically also be provided in the backend. For this reason the development engineers are currently exploring ways of both scaling and integrating the processing unit into the vehicle, and of transferring processing to the backend. The aim is to find the most effective solution going forward.2. The almost limitless possibilities of connectivity.

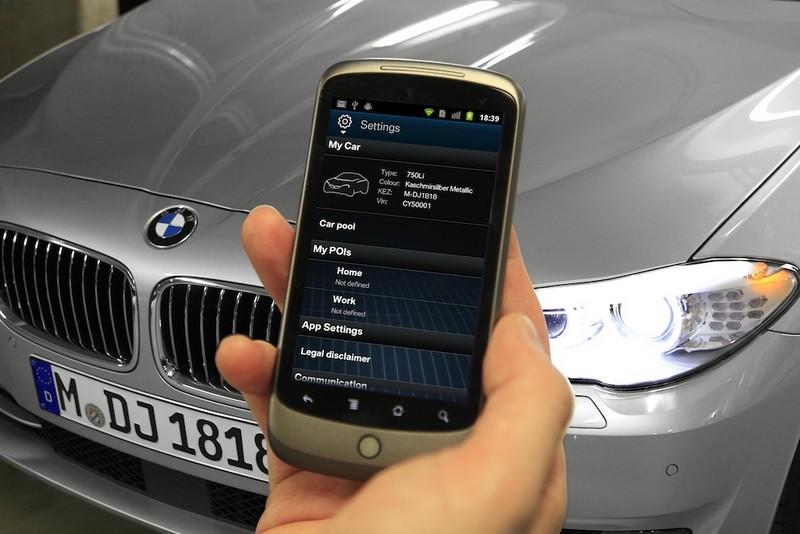

2.1 The wonderful world of apps.The app concept allows for new, individual functions in the car – simple, safe and downloadable at any time.With the introduction of MINI Connected in 2010, the BMW Group became the world’s first carmaker to allow the application-based and extensive integration of the Apple iPhone into its models. Available as an option, MINI Connected links up with a simple USB connection and the MINI Connected App to turn the smartphone into a central interface for infotainment inside, and relating to every aspect of, the car. This technology has provided the launch pad for an all-new in- car infotainment experience. In spring 2011 this interface and app were also made available for BMW vehicles in the form of BMW Apps and BMW Connected. Added to which, the BMW Group has since expanded the app concept to include the internet-based services from BMW Online (available since 2001) and, this summer, also BMW Live. Other compatible apps – and therefore services – from third-party providers can also be integrated into the concept and used in BMW and MINI vehicles.Scope for rapid and flexible expansion.With the app concept – using either the application-based integration of a smartphone or a browser inside the vehicle – the BMW Group developers have created a highly flexible and still unrivalled platform. Indeed, the functional scope of the vehicle can be significantly broadened with the help of vehicle-specific apps certified by the BMW Group, enabling functions such as web radio, GoogleTM Local Search and FacebookTM to be used inside the vehicle safely and in convenience. But that is only the start. The app concept allows the range of functions to be expanded almost infinitely. Updating the app or installing another compatible app brings new functions into the car – without the need for any modifications to the car itself.In addition to the special functions it has created itself, the BMW Group is also using the technical capability provided by MINI Connected and BMW Apps as a platform for the integration of services from other providers. These “third-party apps” will allow a host of infotainment functions which customers already use at home to be transferred seamlessly to the car and operated by the driver. And that means they will have access to the services they want – such as personalised music streaming – at all times, whether they are on foot or travelling in the car.Only apps which meet the requirements of the BMW Group for in-car use are certified and approved by the BMW Group for MINI Connected or BMW Apps. Development partners assist the BMW Group to this end with suitable guidelines, tools and car-related expertise.Innovative functions, adapted to the brand.The flexibility of the local interface is also evident in the brand-specific development of BMW Apps and MINI Connected. Both apps offer access to web radio and Facebook, for example, but MINI Connected also features driving and community-oriented functions such as the MINIMALISM Analyser and Mission Control. BMW Apps, meanwhile, serves the need for seamless functionality and ease of information access with functions such as the integration of the iPhone calendar.The latest version of MINI Connected already offers up to ten different functions, but the developers at the BMW Group are also working on the integration of additional features.Personalising applications in BMW Online.From this summer, BMW ConnectedDrive customers have been able to widen their app experience beyond iPhone-based BMW Apps to include browser- based applications from BMW Online. Added to which, they can use their internet-compatible smartphone to access the latest applications from BMW via BMW Live. For example, BMW offers all customer groups and markets a constantly updated and configurable range of functions. To enable this browser- based functionality, the car needs to be specified with BMW ConnectedDrive and have an Internet connection – either via the integrated SIM card or the customer’s mobile phone – to the backend servers on which the applications are running. The applications can then be selected from the menu of the on-board system via BMW Online or BMW Live and accessed immediately. In this way, the BMW ConnectedDrive package offers comfortable access to the desired applications, in the style you would expect from BMW.My BMW Remote app goes Android.The BMW Group doesn’t only offer solutions for the integration of Apple smartphones; in the future, smartphones based on the Android operating system should also be able to use the BMW and MINI apps. The first step along this road is the Android version of the My BMW Remote app, which controls the same remote functions as its iPhone counterpart. In addition to opening and closing the car, the driver can also use the Climate Control function to access the car’s climate control system and activate its auxiliary ventilation or heating. Added to which, the driver can use the Flash Light or Horn Blow functions to gain a visible or audible reminder of their car’s location (not available in all markets). If the car is out of sight and earshot, it can still be located by the Vehicle Finder function within a radius of up to 1,500 metres. A map then guides the driver to the car. Google Local Search rounds off the portfolio of functions. Here, customers can use the Google search function or the smartphone’s address book to send relevant Points of Interest (POIs) to the car’s navigation system. The e-mobility-specific remote functions of the BMW ActiveE, such as battery charging from outside the car, will also be available for Android phones, as will the upgrade for the My BMW Remote app – slated for introduction in autumn 2011 – which adds the Real-Time Traffic Information (RTTI) function.BMW AppCenters. Ideas factories for the future.The importance the BMW Group is attaching to the area of apps is also reflected in its decision to expand development capacity in this area. The three AppCenters in Munich, Mountain View (California) and Shanghai are working together on the research and development of groundbreaking new applications for smartphones and browser-based technologies. With these three locations linked up closely together, the BMW Group is responding extremely effectively to different customer requirements and the desire for a local range of apps.The close proximity of the AppCenter in Mountain View to Silicon Valley allows far-reaching insights into and exciting link-ups with highly innovative and creative start-ups, while the AppCenter in Shanghai incorporates the needs of the Asian market into the development process. Working together with the Munich-based AppCenter, they allow the BMW Group to ensure that development keeps pace with the times. The three AppCenters operate as a network, underpinned by identical platforms, technologies and software components. And short development times of between two and 12 months allow a rapid turnaround of high-quality market and brand-specific solutions. The developers are currently focusing primarily on apps for community development, car-related functions, infotainment and location-based services. However, these focal points can be varied and extended to respond to differing brand requirements and objectives. After all, the BMW Group experts are expecting busy times ahead in this area.2.2 Infotainment Assistant – your personal range of multimedia.
A car radio that knows what you want to listen to next? Whether it’s music, a news podcast or the latest posts from your Facebook friends,your customised palette of entertainment and information is in the offing.The continuing growth in the number of integration options offered by BMW ConnectedDrive has been accompanied by an increase in the scope of personalised infotainment available to customers. Indeed, vehicles can already be specified with a wealth of information and entertainment technology. Familiar functions such as FM, DAB+ and satellite radio, local infotainment servers, USB, iPod and iPhone integration, MP3 players and mobile phones have been joined by new BMW ConnectedDrive services such as office functions with email access and calendars, and new media like Facebook, Twitter and podcasts. Each of these sources contains information which may be of interest to customers.Yet all this content has to be selected according to source; in other words, drivers not only have to decide what they want to listen to, but also know where to find it. Intelligent search functions and intuitive control systems, such as the voice operation function available from BMW ConnectedDrive for the user’s music collection, can make source-based searches significantly easier. However, the Infotainment Assistant – a new BMW Group research project already tested in a vehicle prototype – goes a step further. This intelligent system overcomes the barriers of source identification and opens the door to personalised infotainment on a whole new level.The different content is presented as if by a personalised radio station, with important emails, calendar entries or favourite songs from friends in the community incorporated dynamically. Text-based content, such as emails, calendar entries or information from communities such as Twitter, is read out through the speakers via the Text to Speech function in order to distract the driver as little as possible from the task of driving.The assistance system recommends, the driver decides.As well as using audio output, the prototype also presents the various content in visual form in the central information display. Here, drivers can view the current selection and content presented previously, and this is also where the Infotainment Assistant flashes up its next suggestion. This personalised “infotainment horizon” can be altered at any time. For example, the driver can skip to the next item, actively reject one of the assistance system’s suggestions or miss out several items and go straight to something of particular interest, such as new emails. In the same way, drivers can also state their wish to stay with the current content and only listen to music, for example, from now on. The Infotainment Assistant registers each of these active interventions and refines its selection of content for the future; every entry from the driver adds to the system’s knowledge base. In order to make content as easy as possible to identify, it is presented to the driver – in Cover Flow-style – using icons through which the driver can navigate.Drivers may also like to enter some core preferences before they use the system for the first time so the Infotainment Assistant has one or two pointers on which to base its recommendations. The aim here is to use a small number of details to prompt the system into drawing as many conclusions as possible on habits and wishes. The more the system is used, the more accurate the personalisation.“It is important to us that the Infotainment Assistant presents the customers with a personal and well-chosen range of content. Drivers can choose to hand over compilation of their entertainment programme to the assistance system entirely. But if they intervene to make a choice, the assistance system automatically registers their selections.” (Dr Wolfgang Haberl, Project Manager Future In-car Entertainment at BMW Group Research and Technology)News in the morning, music in the evening.The Infotainment Assistant also allows suggestions to be adapted to suit the situation. On the way to work, for example, drivers may like to set the system to prioritise incoming emails and news, with the odd musical interlude in between. In other circumstances, however, they might prefer to listen to music and nothing else, or only to sports news. Users can compile these profiles themselves and tweak them according to the services available.The aim of the Infotainment Assistant is to entertain and inform drivers as effectively as possible – according to their preferences – during their journey, regardless of the source from which the information and content have been taken. In so doing, the system offers personalised, straightforward and fast access to content, and ensures it never stops learning.2.3 Network of the future – functionality with LTE over-the-air high-speed internet.

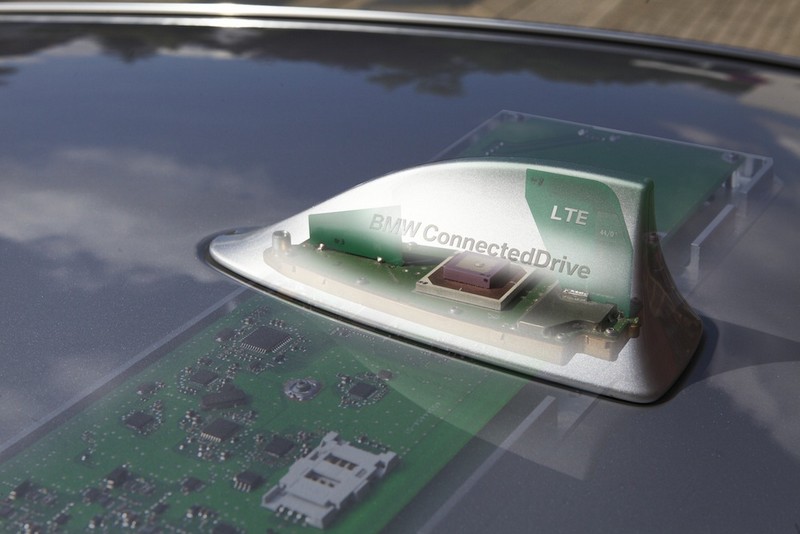

Wireless, faster than DSL and available anywhere – mobile data connectivity via LTE opens up new possibilities for Connected Drive.Internet streaming of music or videos over the air from a mobile phone network to a CE device has been a reality for some time. However, the bandwidth of the current UMTS (3G) wireless standard is limited, and the streaming quality is not always optimal. The videos are transmitted in low resolution, and inadequate network coverage in some areas can cause problems with video and audio stuttering or dropouts.These problems will soon be a thing of the past with the arrival of the new LTE (Long-Term Evolution) standard. LTE, also known as 4G, is a fourth-generation wireless standard and the next major technology standard after GSM (2G) and UMTS/HSPA (3G).High bit rates, low latency.The main highlight of LTE is that it combines extremely high bandwidth with very low latency. Whereas UMTS/HSPA can currently achieve theoretical downlink speeds of up to 14 Mbit/s, LTE is around ten times faster. With peak downlink speeds of 150 Mbit/s and latency in the tens of milliseconds, the mobile internet experience provided by LTE is on a par with, or may even surpass, the kind of quality previously confined to home computers with a landline connection. Uplink speeds for this standard will be in the order of 50 Mbit/s. The higher bit rates are achieved by using state-of-the-art modulation and coding methods and multiple antenna technology.Low latency is a key factor for ensuring high-quality, delay-free operation. Latency is amongst other things a measure of the speed with which the network processes inputs. The extremely low latency offered by LTE is an important enabler for new functions in the car which are supported not by onboard processing power but by backend servers. The combination of low delay times (thanks to the high transfer speeds) and high backend computing power also brings data-intensive cloud applications ever closer. The delegating of processing-power-intensive operations to high-performance backend servers so that the necessary computing power does not have to be available on board the vehicle also reduces space requirements and therefore offers scope for reducing vehicle weight and energy consumption.LTE also provides better area coverage than previous mobile phone networks, since it can operate not only in the high-frequency 2.6 GHz range but also at low frequencies in the 800 MHz range which have better physical propagation characteristics. The high bandwidth is therefore also available when travelling at high speeds. So LTE can continue to offer high-speed internet access even on motorways and main roads.Another feature of LTE is the possibility of prioritising specific data packets. For example, the new backend configuration makes it possible to give highest priority to services which must not be interrupted, in order to increase the probability of continuous transmission. This would have particular advantages for safety- related functions.Efficient use of air interface.One reason for LTE’s high transfer speeds is its high spectral efficiency. Spectral efficiency is the number of bits that can be transmitted per second per Hertz of bandwidth. LTE currently offers a peak spectral efficiency of 16, compared with just 0.2 for GSM. This means LTE offers 80 times more bandwidth.“LTE makes much better use of the air interface. Over-the-air data traffic can be managed far more efficiently with this technology.” (Dr Michael Schraut, Head of the Information and Communication Team, BMW Group Research and Technology)Another first for LTE is the use of multiple antenna systems, that is to say two physically separate transmitting (and two receiving) antennas operate on the same frequency at the same time. The different streams can be identified by their different signal paths. Known as MIMO (Multiple-Input Multiple-Output), this principle provides the high reception performance necessary to support high bit rates. In the research prototype developed by BMW Group Research and Technology, the LTE antennas are integrated in the typical BMW roof fin.LTE in the car.The big challenge when it comes to in-car LTE application is to ensure that LTE’s advantages of faster transfer speeds, combined with sufficient bandwidth and spectral efficiency, continue to be maintained while the vehicle is on the move. Peak bit rates will not be available at every point on the route and there may be wide variations depending on factors such as the position of the vehicle in relation to the stationary transmitter, or line-of-sight conditions. The on-board reception systems must be designed to compensate for signal fluctuation in the moving vehicle and also for Doppler shifts.BMW Group Research and Technology is therefore conducting intensive research, in parallel with extensive live testing, to evaluate the performance of LTE in in-car applications. The live tests are being carried out in urban conditions in Munich and in the surrounding rural area. The focus is on evaluating parameters such as transmission characteristics, latency times and transfer speeds under real-world conditions. Initial promising results show peak download speeds of up to 70 Mbit/s, with average speeds of 23 Mbit/s in town. Overall, the tests show significantly improved area coverage combined with the improvement in bit rates.“LTE will ensure continued delivery of a perfect in-car BMW ConnectedDrive experience. It will also allow us to provide new, innovative functions.” (Michael Schraut)The services already offered by BMW ConnectedDrive can benefit greatly from the improved speed, performance and area coverage offered by LTE. Server- based services such as video or music streaming to the car will become more attractive thanks to the high bandwidth and low latency offered by LTE.BMW Group Research and Technology is also investigating other application scenarios – for example outsourcing of traffic sign recognition to backend servers. The front-mounted camera would scan the signs and stream the information via LTE to the backend server. There an algorithm would identify the signs – including new, unfamiliar ones – and send back the relevant information to the vehicle. This would provide a simple and convenient way of keeping this driver assistance system state-of-the-art and abreast of new traffic signs throughout the life cycle of the vehicle.When will LTE be here?That question is quickly answered: LTE is here already. It is now available in 20 countries via 29 commercial networks. In the USA, the first LTE-capable smartphones are already on the market and some operators both in the USA and in Germany are predicting that LTE will be as big as the current UMTS network as early as 2013. The better area coverage means the high bandwidth will also be available when travelling on motorways and main roads. As soon as these goals in terms of availability and area coverage are realised, the BMW Group will be excellently positioned to take its in-car BMW ConnectedDrive services to a new level.3. Enhanced convenience with innovative control and display technology plus intelligent navigation.3.1 Augmented Reality – new dimensions in driver assistance and navigation courtesy of the contact analogue Head-Up Display.
Navigation directions merge with reality, hazards are indicated in the driver’s direct line of vision: the contact analogue Head-Up Display signals the intuitive and safe display experience of the future.In 2004, the BMW Group was the first automotive manufacturer to bring out a colour Head-Up Display which projected driving-related information directly in the driver’s line of sight. In early 2011 the latest generation of this system was introduced, featuring full-colour graphics. But already the BMW researchers and developers are working on a new milestone in this technology which will see the Head-Up Display acquiring “contact analogue” functionality. This is a technique whereby virtual “markings” are superimposed on real objects in the external environment, so that navigation information or information from the driver assistance systems can be displayed at exactly the right points on the driver’s view of the road scene. Navigation instructions can be blended into the road, and vehicles or safety-relevant objects can be highlighted or marked in context.What exactly is augmented reality, or a contact analogue display system?The Head-Up Display was the first step towards in-car implementation of augmented reality. The HUD augments the external scene with additional information and artificially generated objects which react to and adapt to the situation in real time. The Head-Up Display presents useful information such as current speed and navigation information directly in the driver’s line of sight, but the technology has much greater potential than that: its applications can be greatly expanded by the use of contact analogue display technology.Contact analogue displays are a special form of augmented reality. The displayed information is integrated into the external environment in the correct perspective and at the actual point or points in the scene to which it relates, so that effectively the information appears to be “attached” to the external objects. Contact analogue displays have many advantages. The fact that the information is presented in the driver’s direct line of sight, and that it is overlaid on the objects it is referring to, means that the driver does not have to shift his attention away from the driving scene. His gaze is not distracted and he does not have to change focus, as he does when looking back from an instrument cluster or central information display to the road. This means that information relevant to the driving situation can be scanned more quickly and more directly. At the same time, currently required actions can be displayed in an intuitive form.“With the contact analogue HUD, we place the information at exactly that point in the driver’s field of view where it belongs and is required. The driver no longer has to correlate abstract information to the concrete driving situation. Since the display is directly congruent with the real world, we can also selectively direct the driver’s attention to specific information or hazards, so that he can respond quickly and in an appropriate manner.” (Dr Bernhard Niedermaier, Head of Human-Machine Interaction at BMW Group Research and Technology)Contact analogue displays are already a reality.Ideally, contact analogue displays would make use of the driver’s entire field of vision. From the technical point of view, however, this is not yet possible. Nevertheless, contact analogue display functionality can already be implemented even within considerably smaller display areas, with significant benefits for the customer. Two application scenarios are described below which illustrate the wide-ranging possibilities offered by contact analogue displays.Contact analogue navigation.The first scenario shows the possibilities of contact analogue display applications in the field of in-car navigation. Whenever a navigation manoeuvre needs to be performed, such as turning at an intersection, the system presents the information in such a way that it appears to blend with the road itself. The driver can keep his eye on the road throughout, and intuitively drives in the right direction.“Turning manoeuvres and lane recommendations are shown in such a way that they appear to be directly mapped onto the road. Drivers no longer have to correlate the abstract image from a map to the road in front of them. Instead, the task is delegated to the contact analogue Head-Up Display.” (Robert Hein, Head of Navigation and Data Services of the Future at BMW Group Research and Technology).Contact analogue navigation works like this: the navigation system calculates the optimal route based on digital road map information. If lane-level information is available, the route is further refined and the necessary lane manoeuvres are computed. Positioning information continuously supplied by GPS and vehicle sensor systems allows the vehicle to detect the lane it is currently travelling in and compare it with the optimal lane for the given route. If the vehicle is not in the correct lane for an upcoming manoeuvre, the system computes a 3D model of the road situation ahead using the signals from the camera system, and superimposes the instructions congruently on the external scene.Application in driver assistance systems.A second application scenario for contact analogue displays is in the field of driver assistance systems. Here the contact analogue functionality provides the driver with a better understanding of what is going on around him and makes it easier to absorb highly specific instructions. For example if the driver activates Active Cruise Control with collision warning, the system not only shows the driver – in the real-world environment – which vehicle is currently serving as the “lead vehicle”, it also shows the preset following distance, superimposed directly onto the road surface. Instructions to the driver to intervene are therefore more easily and more quickly understandable. Other information that could potentially be “projected” in this way includes lane boundaries, lane departure warnings, nighttime highlighting of pedestrians not readily visible to the driver, and even recommendations for evasive manoeuvres into other lanes, complete with marked-out paths.Outlook and technical challenges.The bigger the display area, the more applications contact analogue display technologies can offer. Looking further ahead, the developers are therefore already aiming to increase the size of the displays as much as possible. In the first prototypes, they have already been successful in presenting contact analogue information for the vehicle’s own lane, using an area just four times bigger than that of current head-up displays. In a test environment, they have also already implemented wider display areas, capable of presenting information for a number of lanes. A further consideration when integrating driving-related and location-based information into the external scene is that the virtual images need to be projected at a considerably greater apparent distance from the driver than the 2.20 metres most appropriate for current HUDs. Also, the display area must be moved further up towards the horizon, so that the displays are positioned over the driving situation. One of the main challenges the developers face now is to free up the necessary space and to develop the requisite technological solutions for head-up displays of this kind.Testing in the driving simulator.Initial testing of new display systems, like the contact analogue Head-Up Display, is carried out mainly in the BMW Group driving simulators. Driving simulator testing is more cost-efficient, and modifications can be made more quickly, than using real vehicle prototypes. Different versions can be quickly implemented and tested under identical conditions, within a short time scale and with large numbers of pilot users – without the hazards of road testing. These are particularly important considerations in view of the amount of verification testing required when developing pioneering new display concepts like the contact analogue Head-Up Display.The BMW Group driving simulators are an optimal tool for highly realistic testing of complex display processes. Up to seven full-HD projectors provide a high-resolution, sharply focused simulation of the driving environment. This is particularly important for detecting and classifying more distant objects and for identifying the direction of the road. The special projectors also provide highly realistic simulation of moving objects. Fluent and sharp imagery is of great importance when simulating urban driving scenes, where large numbers of objects are represented in great detail, in order to ensure that pilot users have a sound basis for judging driving manoeuvres.3.2 Gesture recognition – in-car control with simple hand movements.

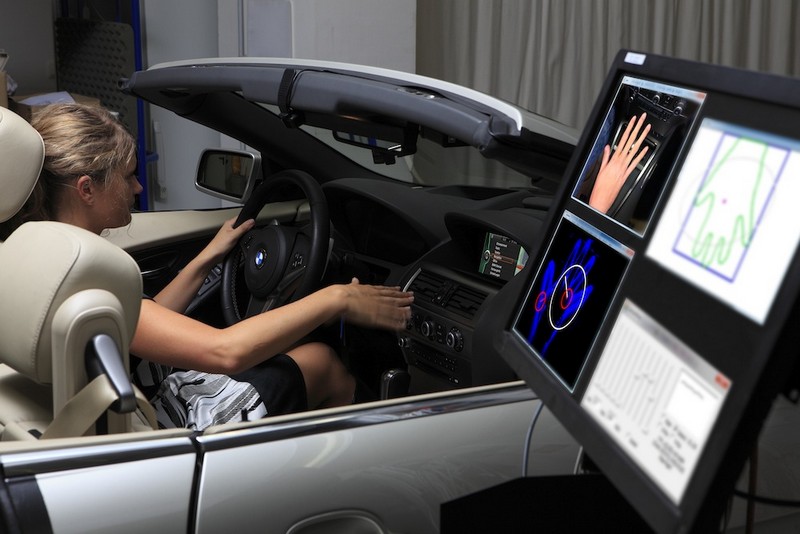

Whoosh – move your hand and a new track plays. This is manual operation in the true sense of the word. Next stage: a nod of the head?Gesture recognition – point your finger and the car will obey.Many electronic devices already make use of gesture recognition as a simple, fast and above all intuitive method of user operation. Whether using finger gestures on a smartphone or to play computer games on the TV at home – gesture recognition is playing an ever more important role in human-machine interaction. And now the BMW research teams are looking at ways in which this technology can be applied to cars as well.Accent on the user experience.Particularly in the field of home entertainment, however, gesture recognition technology has now evolved to a high level of maturity. The BMW researchers are taking such existing commercially available technology as an empirical starting point for their work on gesture recognition in automotive applications. This relatively new research project will focus on gesture control in the car, with reference also to the user experience. Of particular interest is the question how and in what applications gesture recognition is a practical and intuitive option, and also where this interaction technique has its limits. The findings will shed light on the potential and preconditions for use of in-car gesture control. The next step will be the translation of validated results into concrete in-car technical systems.Gesture recognition in the car.Use of gesture recognition in the car is subject to various restrictions, since it has to take into account a number of requirements which are less important in the field of home entertainment or smartphones. In the vehicle environment, gestures must be short, concise and unambiguous. Performing them must not cause more than brief distraction and must not negatively impact the driving task in any way. In short, gesture control in the car must meet the same high standards in terms of interruptibility, non-distraction and straightforwardness as any other control system used to operate infotainment functions in premium vehicles of the BMW Group.Less is more.The research project is currently working on six different gestures whose point of reference is the current screen content in the central information display. These gestures comprise swiping the hand to the right or left, or up or down, or moving the hand towards or away from the instrument panel.The focus is on simple gestures. For example, the hand can be moved to the left or right to switch the split screen on or off. It can be moved up or down to scroll through the screen content. And it can be moved towards the screen to cause the display to return to the main menu.3.3 Intelligent navigation: how will we get from A to B in 2015?Forget route planning, searching for parking spaces and “Darling, I’m stuck in traffic so I’m going to be late for dinner.”Intelligent route planning – i.e. planning a route to a given destination taking into account criteria such as speed, fuel-efficiency or intermodality – has been a development focus at the BMW Group for many years. Such technology has already reached a high standard in the latest navigation systems, with the integration of functions such as BMW Routes and Real-Time Traffic Information (RTTI). From A to B with future BMW ConnectedDrive functions.8.00 hrs: It’s Monday morning and you’re preparing for your regular commute to work. However, this time you have decided to depart a little earlier than usual. That’s because an hour before you would normally leave the house, you got an email on your smartphone from the BMW Routes portal advising you that to get to work on time you would need to set off 20 minutes early. The reason is congestion on the motorway, which there is no way of avoiding.The right departure time, thanks to BMW Routes (incorporating RTTI).You got this message – an exclusive service for BMW ConnectedDrive customers – because you had already pre-planned your commute to the office in the BMW Routes - Die internationale BMW Routen Website online portal and saved it, together with your desired time of arrival, as your standard route for Mondays to Fridays. Having been entered in the portal, the route is also accessible on board the vehicle, where it can be imported straight into the navigation system. Available since 2008, the BMW Routes portal now also incorporates RTTI.Urban navigation.8.30 hrs: You encounter the predicted congestion on the motorway. But thanks to the tip-off, you still have time in hand. You take your usual exit, but as soon as you are off the motorway the navigation system recommends you take a different route from normal. One of the main traffic routes is closed due to an event due to take place in a few hours’ time. Your navigation system was forewarned because it has access to local authority traffic management data. It was therefore able to calculate an appropriate alternative route involving minimal loss of time. When calculating this new route, the system also took into account traffic light phasing so that you are automatically given a route that will make the most of “green waves”. By taking into account such local authority traffic management and traffic planning data, this future routing option, which is known as “urban navigation”, is able to recommend an urban route on which the traffic is most likely to be free-flowing – which also means a more eco-friendly journey.
